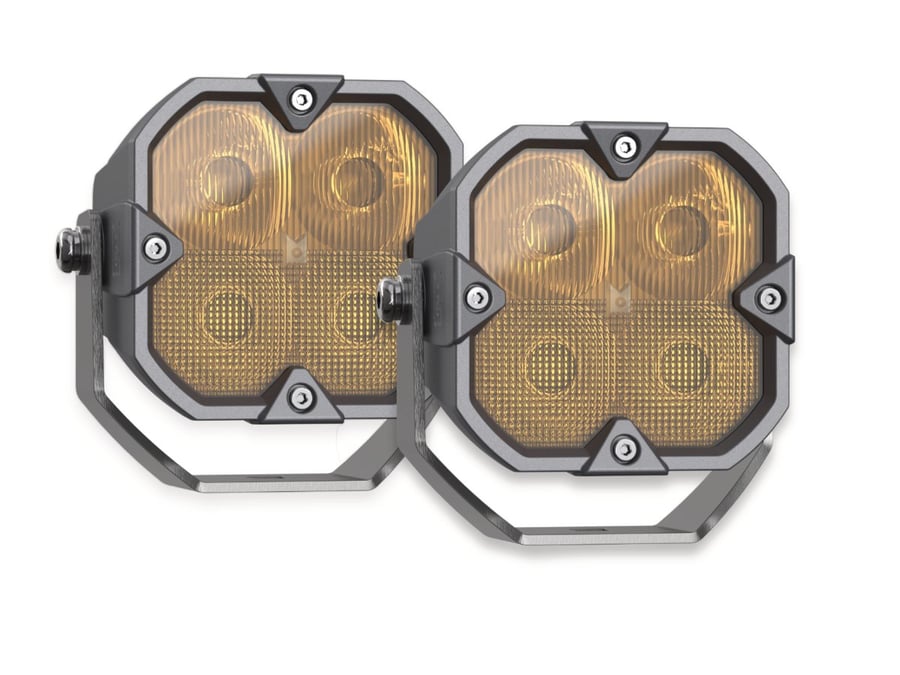

ARC Concept Series Pod - 3" Cube LED Pod Lights - Driving Beam - w/SafeSwap Lenses - Pair - dnp

Part #:
BB4211D
SKU:
FG-BB4211D
Availability
Fargo - In Stock
Sioux Falls - Chat Or Call For Availability
UPC: 00793888973688

Additional details

  • Patent pending SafeSwap technology to swap lens and mounting options without factory seal
  • Modern dual projector optics to provide precise street legal and off road beam pattern in one package
  • Advanced CREE automotive grade LED chip to produce high intensity illumination
  • Available in Fog (4211F) and Driving (4211D) options
  • Available in SAE Driving, SAE Fog, Hybrid Offroad beam patterns in white and amber colors
  • Premium quality with UV stabilized polycarbonate lens
  • Aluminum black power coated housing and stainless steel bracket and hardware
  • 12, 24 and 48 VCD compatible
  • Meet EMC CISPR 25 requirement
  • Weatherproof IP69K rated

Tiny Monster’s Concept Pod Pro revolutionized automotive lighting design to deliver the most compact and powerful street-legal/off road driving lights ALL in ONE package!  Our proprietary optics design gives you the freedom to customize your lighting with SafeSwap technology. This system allows the same pod to transition between street legal beam and off-road beam by simply swapping the lenses! You can also swap between clear to amber lens, or from pedestal mount to flush mount by simply swapping lenses and brackets all without breaking the factory seal! Two sets of street-legal and two sets of off-road hybrid lenses in amber and clear color are included in the package.

Equipped with premium automotive grade CREE chip, Concept Pod Pro are engineered to reach the maximum allowable beam distance for each of the regulated lighting zones in SAE/DOT regulations!  Built with rugged aluminum alloy housings and UV stabilized polycarbonate lenses, Concept Pod Pro offer greater performance and flexibility for different driving and weather conditions. Make your vehicle the envy of the road with a set of our Concept Pod Pro today and discover the possibilities.

What's Include:

  • 2 X LED Pods
  • 2 X Amber Driving Lenses
  • 2 X Clear Hybrid Lenses
  • 2 X Amber Hybrid Lenses
  • 2 X DT wire pigtails
  • 2 X U Mount brackets and hardware

Specifications:

  • Power: 32 Watts
  • Current Draw@12VCD: 3 Amps
  • Lumen Output: 2800 LM
  • LED Count: 4 LEDs
  • LED Emitter: CREE XPP
  • Color Temp (CCT): 6000K
  • Color Temp (CCT): 2600K
  • LED Color: White
  • Lens Color: Clear and Amber
  • Material Type (Lens): Ultra-strong UV stabilized polycarbonate lens
  • Material Type (Body): Cast Aluminum Housing - Powder Coated Black
  • Material Type (Hardware): 304 Stainless Steel
  • BEAM Pattern: Driving Beam / Offroad Hybrid Combo
  • Compliance: SAE J581
  • EMC: CISPR 25 CLASS 3
  • IP Rating: IP69K
  • Voltage: 10-48V
  • Operating Temperature: -40°F to + 185°F
  • Dim: 3.15” H x 3.15"" W x 3.15"" D
  • Cable Length: 11"
  • Connector(s): DT
  • Warranty: 5 Year Warranty

Brand ARC LED Lighting
Length 7.2 inch(es)
Width 6.6 inch(es)
Height 3.4 inch(es)
Weight 3.7 lb(s)
UPC 00793888973688
