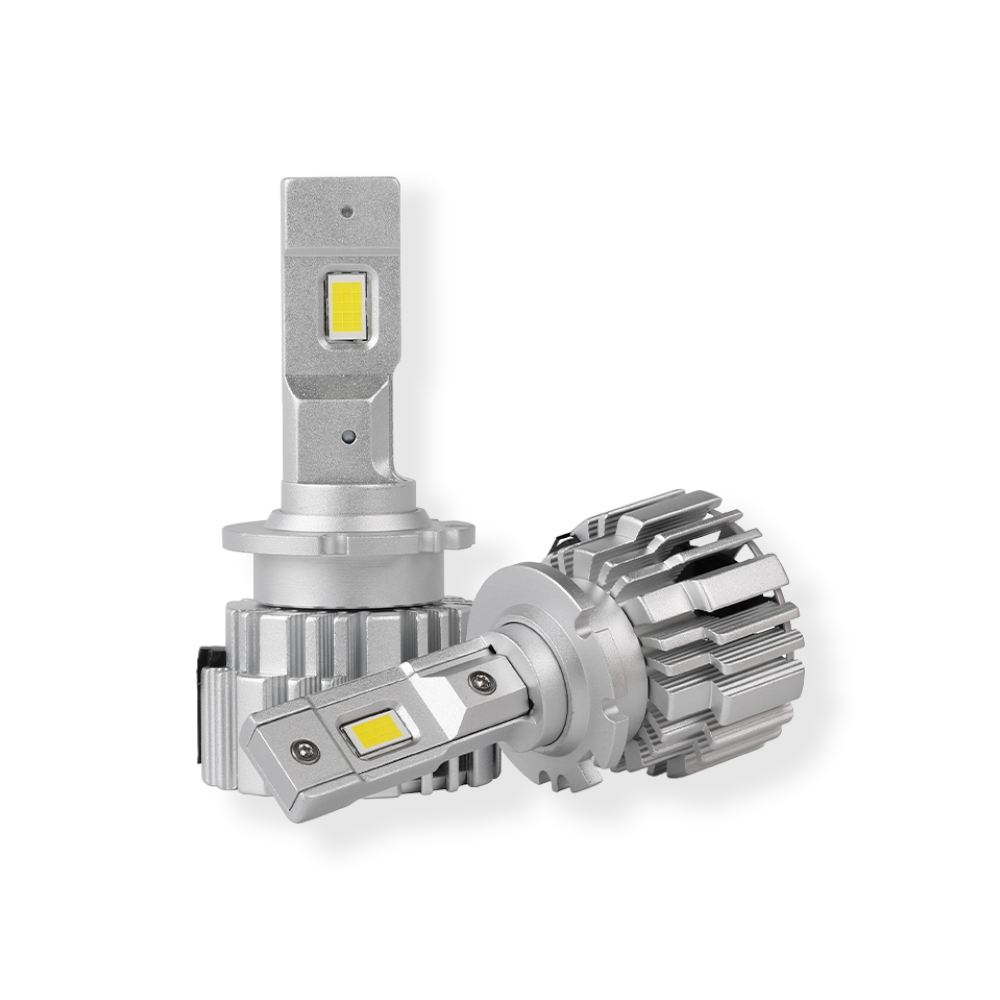

ARC Xtreme LED Replacement Headlight Bulbs - D4 - Pair

Part #:
22D41
SKU:
FG-22D41
Availability
Fargo - In Stock
Sioux Falls - Chat Or Call For Availability
UPC: 00752830158962

Additional details

  • Powerful 10,000 lumens output that beats the 35W HID system
  • Ideal for off-road and rural driving conditions
  • TopAim feature allows 360° rotation of the bulb head for optimal beam pattern
  • Engineered for long-range visibility with zero glare

Installation Video

Step by Step Instructions

Revolutionize your driving experience with ARC's Xtreme Series LED Replacement Bulbs. Engineered for those who demand the pinnacle of lighting performance, these bulbs combine cutting-edge technology with unparalleled brightness to deliver a lighting solution that outshines the competition.

Key Features:

  • Extreme Brightness:
    • Produces up to 5x the light output of stock halogen bulbs
    • Outperforms most 35W HID systems with an impressive 10,000 lumens per kit
    • 6500K color temperature for crisp, daylight-like illumination
    • Ideal for off-road and rural driving conditions where maximum visibility is crucial
  • Advanced Cooling Technology:
    • Patented VacPipe vacuum heat pipe cooling system
    • 3x more efficient heat dissipation than conventional heat sink designs
    • TurboCool system with enclosed waterproof, high-speed ball bearing turbofan
    • Compact fan design fits even in tight spaces with dust covers
    • SmartDrive technology with Advanced Temperature Regulation (ATR) ensures longevity and consistent performance
  • Precision Optics and Design:
    • Engineered for long-range visibility with zero glare
    • 360° beam angle for comprehensive illumination
    • TopAim feature allows 360° rotation of the bulb head for optimal beam pattern
    • Compact design fits in spaces where traditional bulky LED replacements can't
  • Versatility and Durability:
    • Compatible with both reflector and projector housings
    • Shock-resistant construction for off-road durability
    • IP65 waterproof rating for all-weather driving
    • Suitable for high beam headlights and projector-style headlamps

Specifications:

  • Light Output: 10,000 lumens (per kit)
  • Color Temperature: 6500K
  • Power: 45W per bulb
  • Current: 3.0A @ 13V DC per bulb
  • Voltage: 9 – 16V DC
  • Beam Angle: 360 Degrees
  • Waterproof Rating: IP65
  • Warranty: 2 years

Xtreme Series vs. Concept Series - Choosing the Right Bulb:

  • Xtreme Series (This Product):
    • Recommended for off-road and rural driving conditions
    • Best for projector-style headlamps and high beam headlights
    • Delivers extreme brightness, outperforming 35W HID systems
    • Ideal for drivers who need maximum illumination in challenging environments
    • Not recommended for fog lights due to potential issues with the cooling system in enclosed spaces
  • Concept Series:
    • Ideal for city driving and improved everyday visibility
    • Features a more focused and controlled beam with zero glare
    • Best for reflector-style low beam headlights and fog lights
    • Compact design without fan cooling for easier fitment in tight spaces
    • Recommended when a more subtle upgrade from halogen is desired

When to Use a Decoder Harness: A decoder harness may be necessary when installing these LED bulbs, particularly in vehicles with sophisticated electrical systems. Consider using a decoder if you experience:

  • Bulb flashing when turned on
  • "Headlight out" error displayed on the dashboard
  • Bulbs staying illuminated after being turned off
  • Abnormally dim light output

The decoder harness is designed to handle both CANbus and Pulse Width Modulation (PWM) systems, providing a plug-and-play solution for most modern vehicles. It's particularly useful for:

  • Power Monitoring: Some CANbus systems monitor current input and may trigger errors with LED bulbs. The decoder helps the system adjust to the new power demands.
  • PWM Compatibility: LED bulbs require constant current, unlike halogen bulbs. The decoder's capacitors store power to provide a steady current flow, preventing flickering or premature shut-off.

Installation Tips:

  • Orientation: Position LED chips at 3 o'clock and 9 o'clock for optimal beam pattern
  • Alignment: Ensure the spade shaft is vertical, with forward chips in the top, front "up" position
  • Cooling: Ensure adequate space for proper fan operation and heat dissipation
  • Wiring: Consider using a decoder harness for vehicles with advanced electrical systems

The ARC Xtreme Series LED Replacement Bulbs represent the zenith of automotive lighting technology. They're engineered for drivers who refuse to compromise on visibility and demand the best possible illumination in challenging driving conditions. Whether you're conquering off-road trails, navigating pitch-black rural roads, or simply want the brightest legal lights for your vehicle, the Xtreme Series delivers unparalleled performance.

Upgrade to the ARC Xtreme Series LED Replacement Bulbs and experience a new level of clarity and confidence on the road. With their combination of extreme power, efficient cooling, and intelligent design, these bulbs don't just replace your old halogen lights – they redefine your entire driving experience.

BrandARC LED Lighting
Length6 inch(es)
Width3 inch(es)
Height6 inch(es)
Weight1.1 lb(s)
UPC00752830158962
