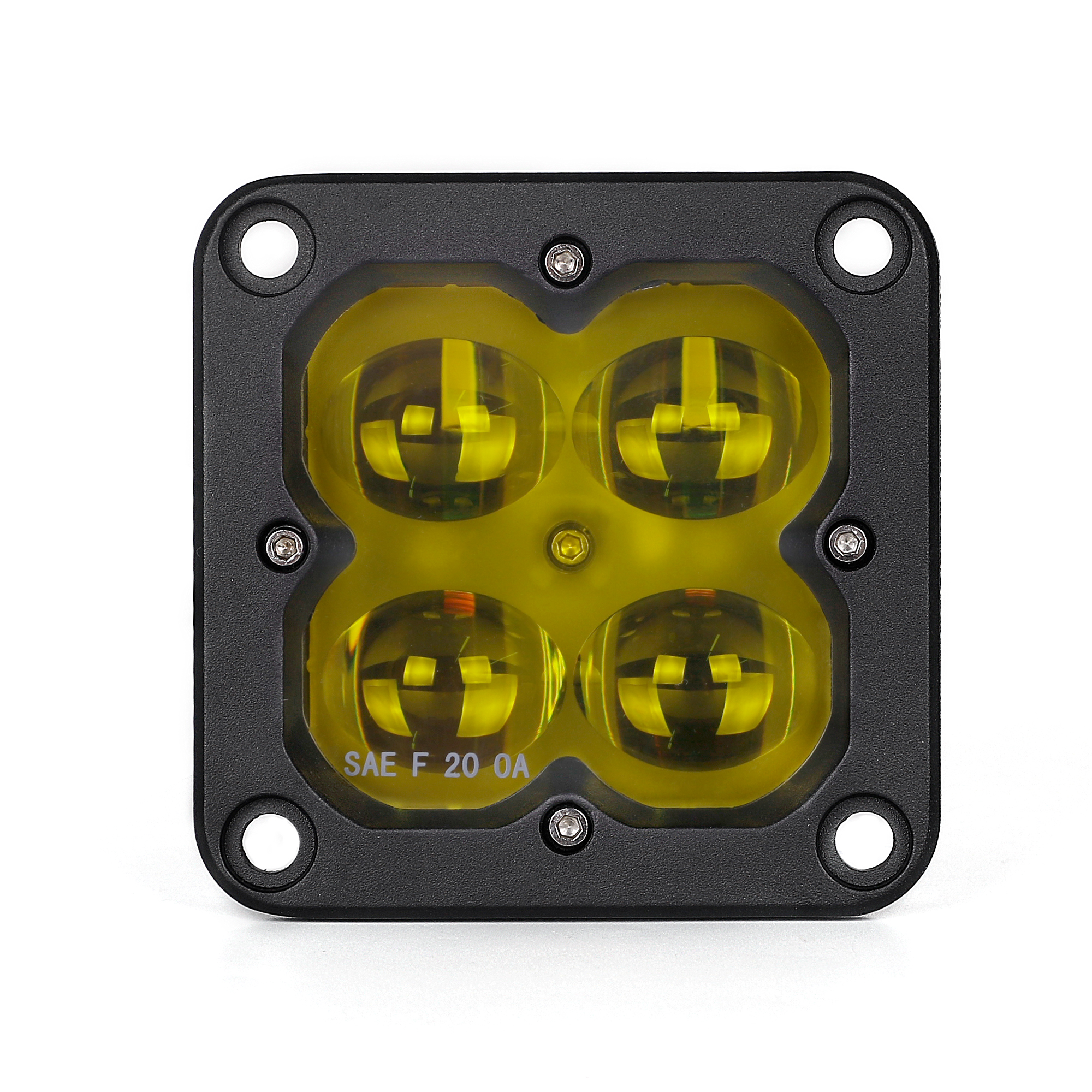

The ARC Concept Series 3" Flush Mount Cube LED Pod Fog Lights with Yellow Lens represent the pinnacle of automotive lighting technology in a streamlined, flush-mount design. These compact, powerful fog lights are engineered to significantly improve visibility in adverse weather conditions while meeting strict SAE standards for street-legal use.
Key Features:
- Precision Optics: Equipped with automotive-grade Osram OSLON LEDs and TIR projector lenses
- Yellow Lens: Optimized for fog penetration and reduced glare
- Street Legal: SAE J583 certified for fog light use on any roadway in the USA

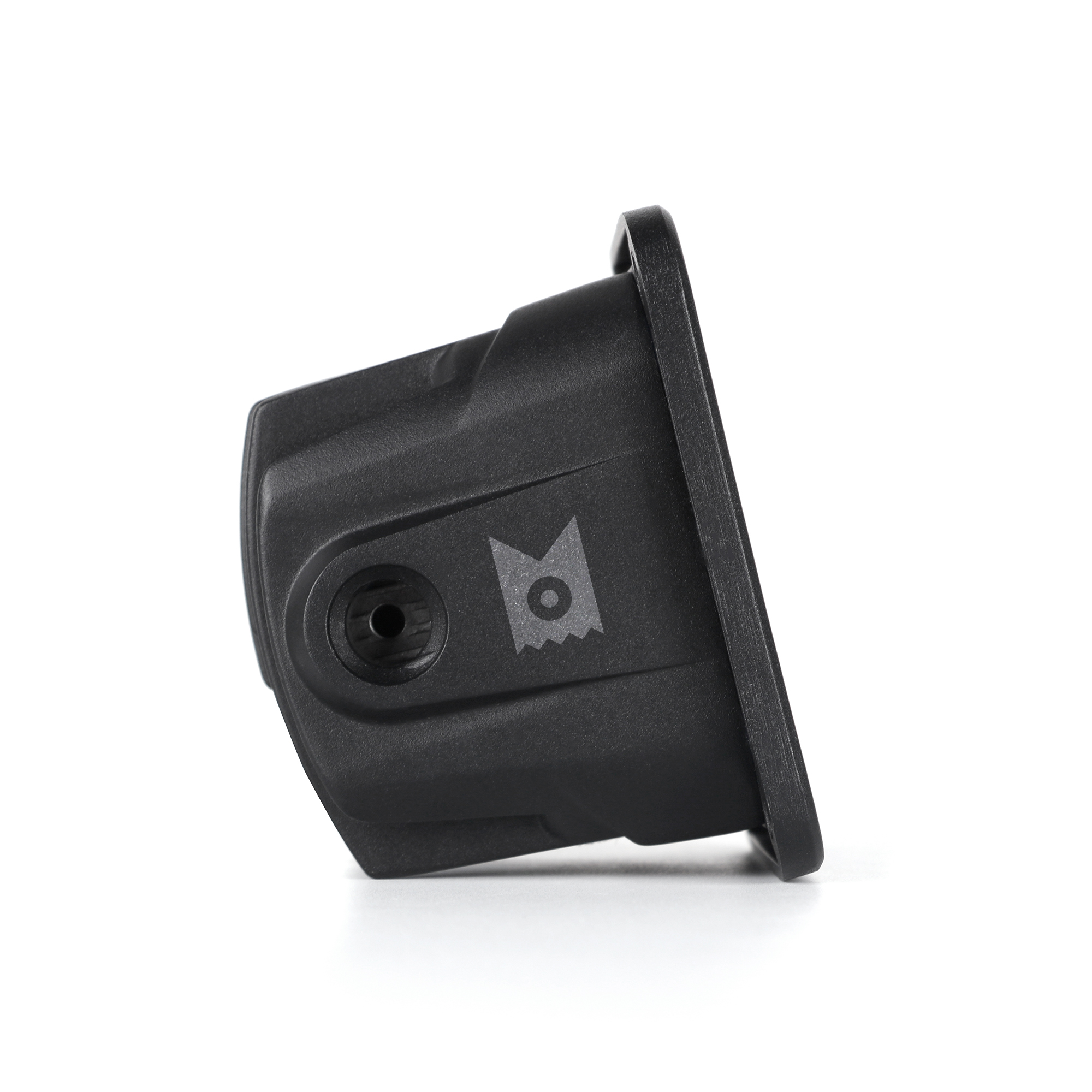

- Flush Mount Design: Sleek 3.5" x 3.5" x 2.6" chassis for seamless integration
- High Performance: 1,500 lumens per light for superior illumination
- Durable Construction: IP67 rated for protection against dust and water
- Versatile Power: Compatible with 10-36V DC systems
Why Choose ARC Concept Series Flush Mount Yellow Fog Lights:
- SAE Certified: Fully compliant for legal use on all US roadways
- Improved Visibility: Yellow light cuts through fog more effectively than white light
- Versatile Application: Perfect for replacing stock fog lights or adding auxiliary lighting
- Premium Components: Osram OSLON LEDs ensure long-lasting, high-quality illumination
- Durable Design: Built to withstand harsh environments with IP67 rating
- Extended Warranty: Backed by a 3-year warranty for peace of mind
Includes:

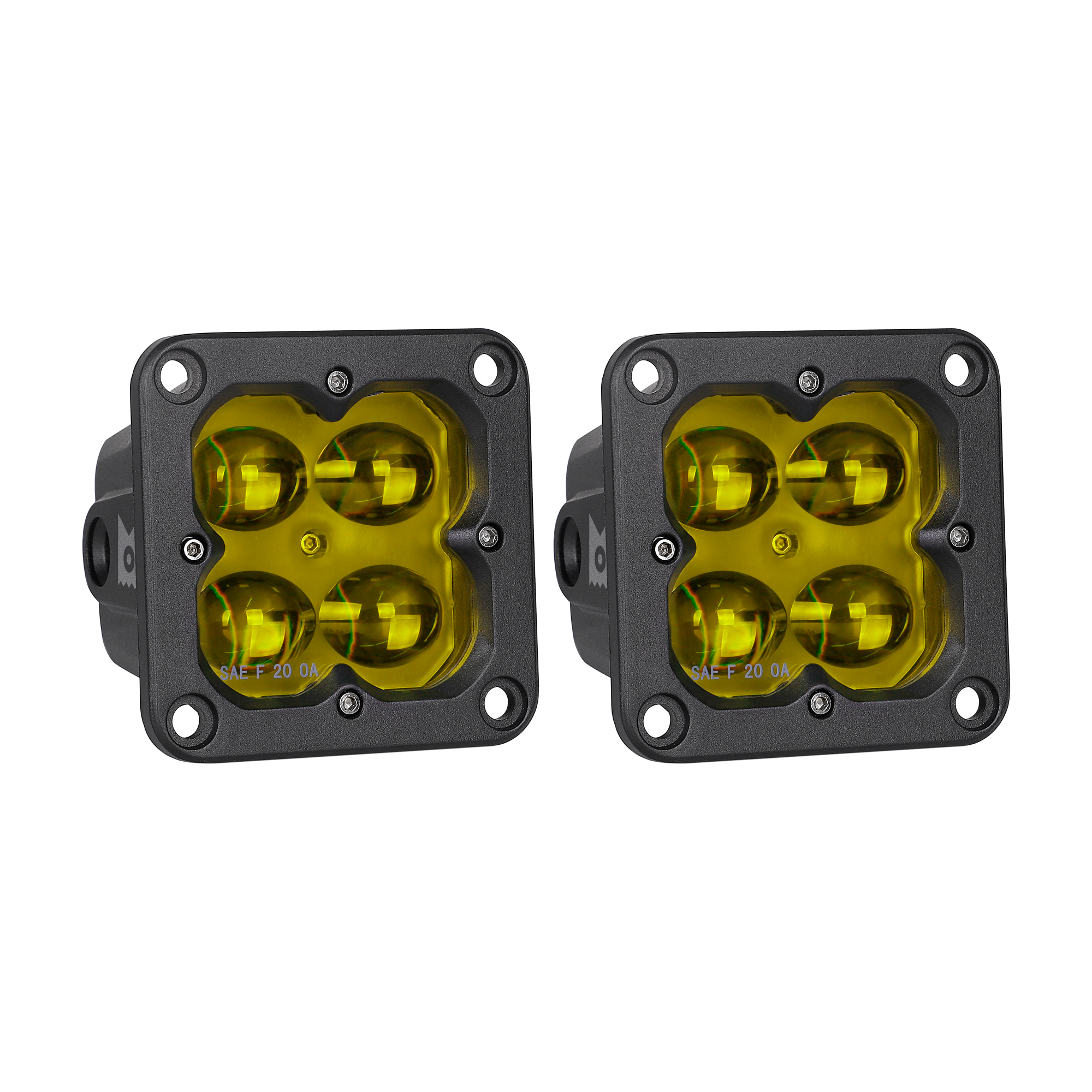

- 2 x LED Pods Flush Mount with Yellow Lens

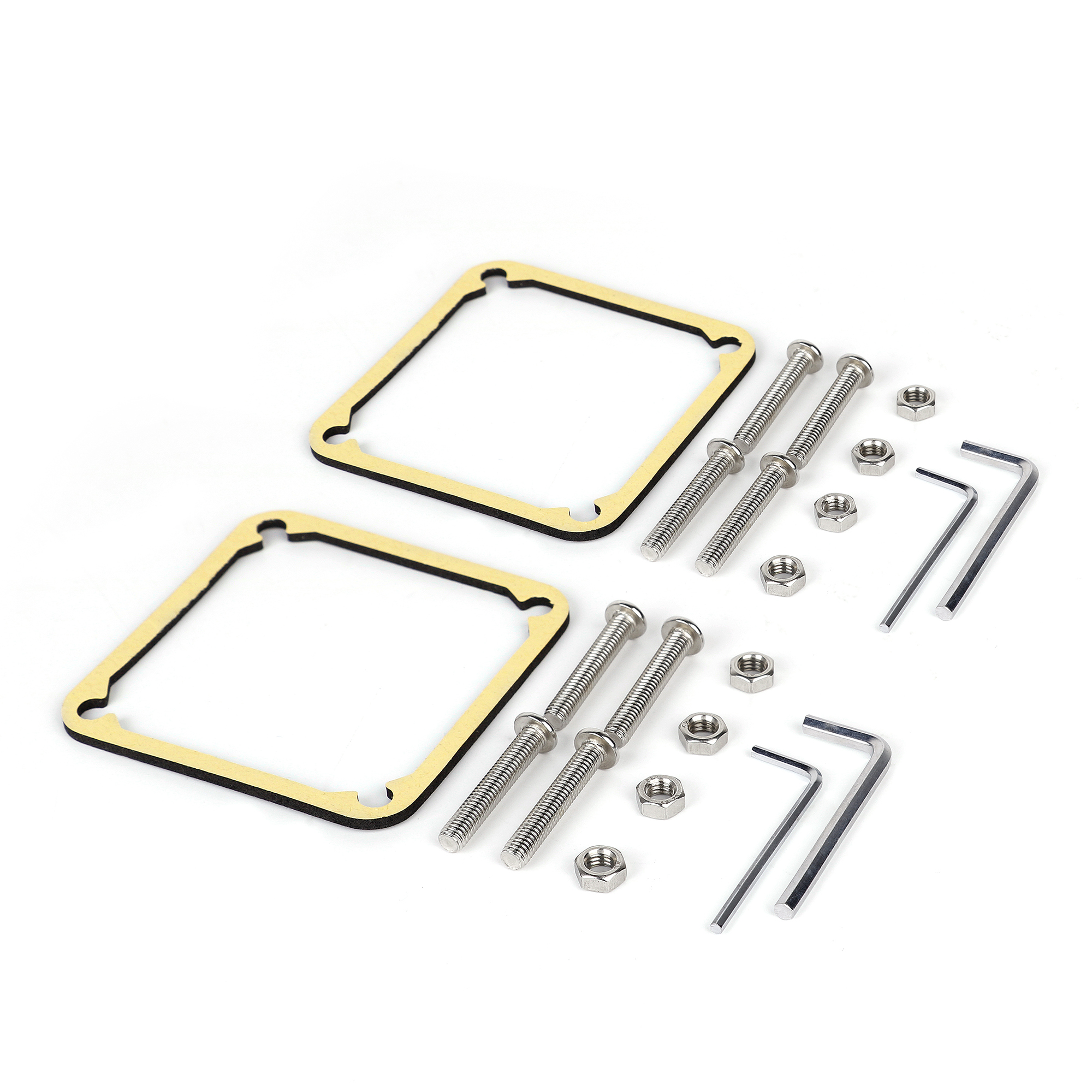

- 2 x Foam Bracket Pads
- Mounting Hardware

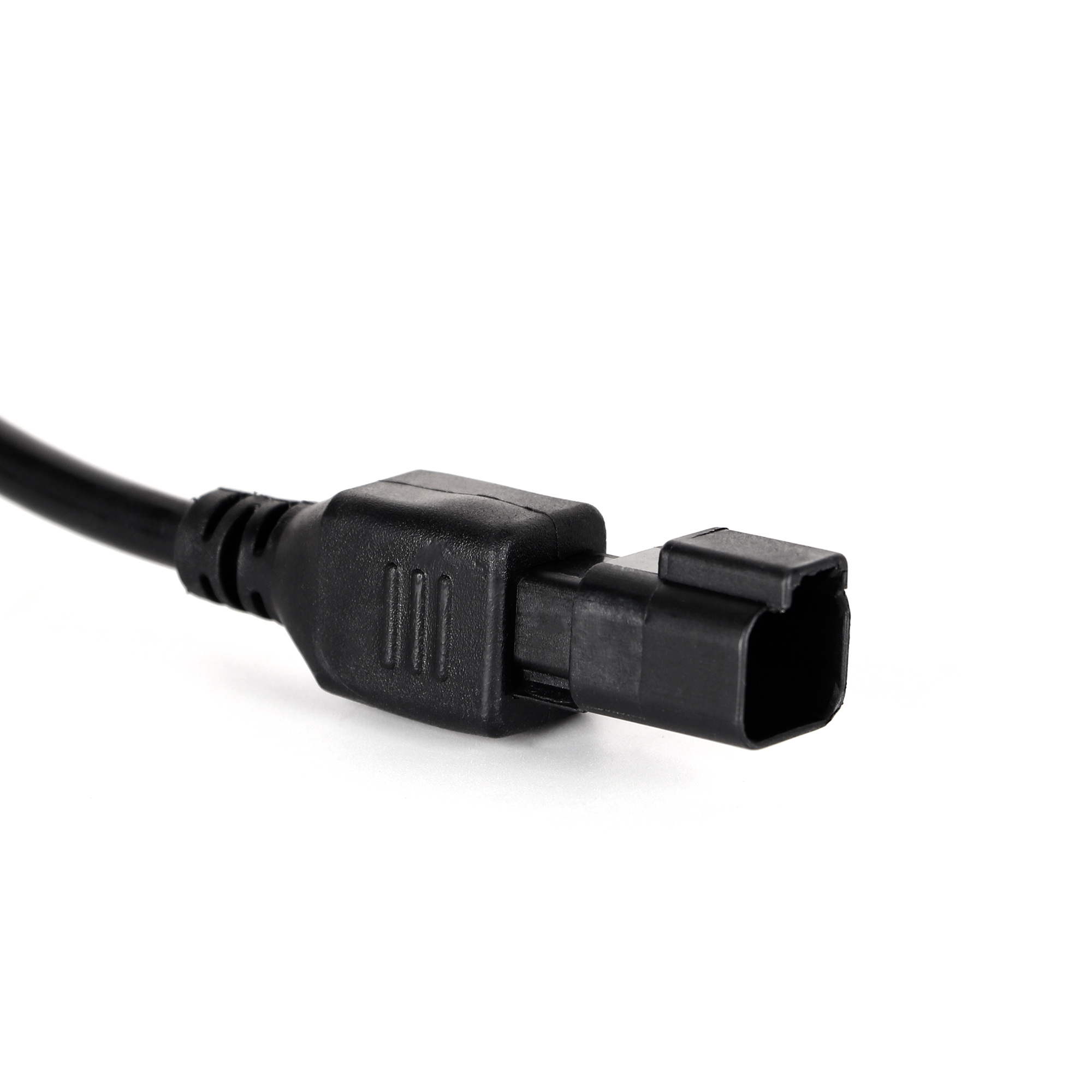

- (Note: Wiring Harness Sold Separately - SKU#:84002)

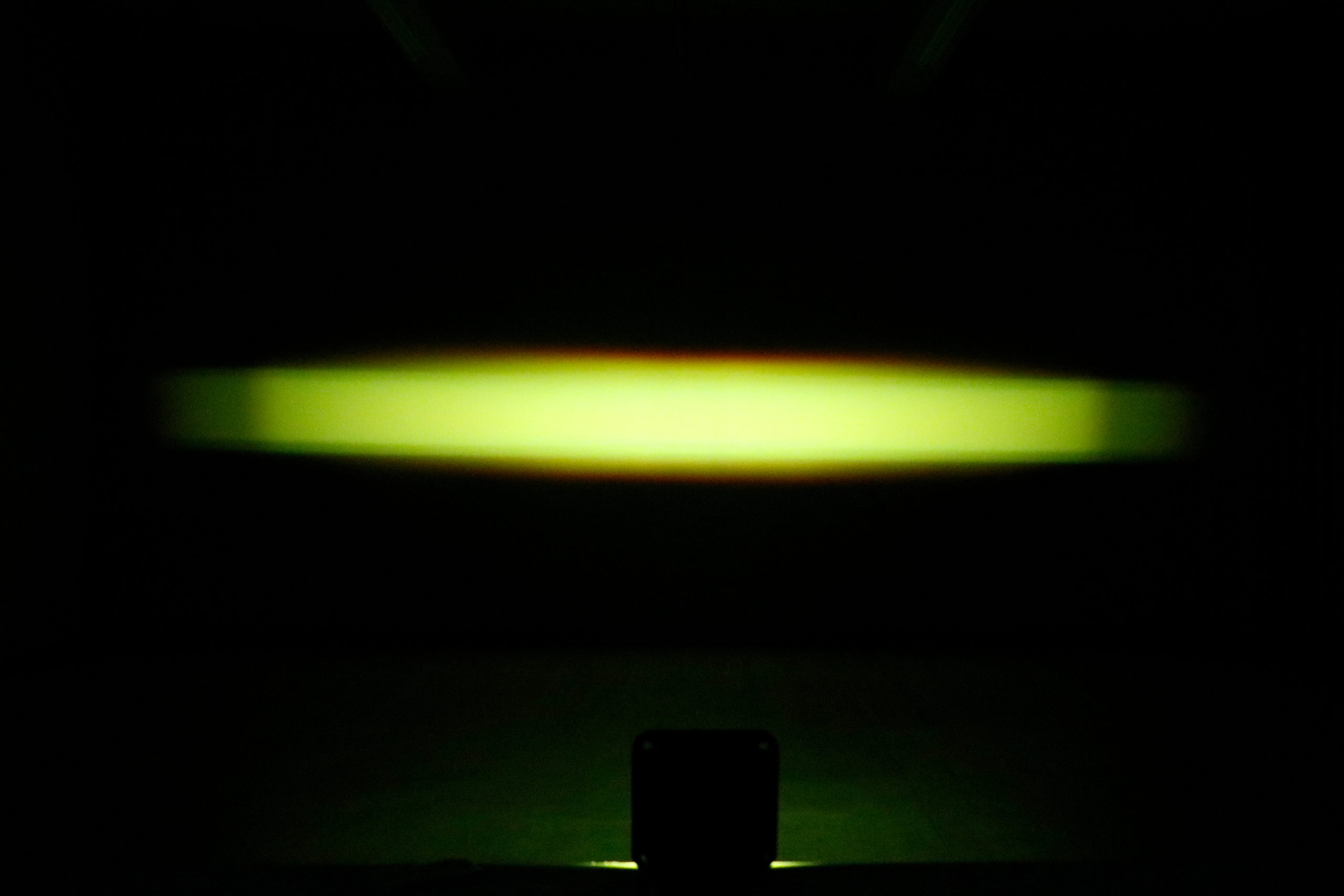

Fog Beam Advantage:
The street-legal fog beam is specifically designed to be mounted low on your vehicle, providing a widespread horizontal beam with a constricted vertical spread. This configuration, combined with the yellow lens, helps illuminate the road beneath your headlights while reducing glare from raindrops, snowflakes, or dust particles. The result is improved visibility and safer driving in adverse weather conditions.
Installation:
- Determine suitable mounting locations for the LED Pods, wiring harness, and switch.
- Connect the wires according to the provided diagram, ensuring proper insulation at all connections.
- Connect positive and negative wires correctly, then test the lights using the switch.
- Adjust the lights to the desired angle and secure by tightening all mounting screws.
Specifications:
- Light Output: 1,500 Lumens (Per Light)
- LEDs: Osram (Oslon)
- Lens Color: Yellow
- Power: 20W @ 13.6V DC
- Current: 1.5A @ 13.6V DC
- Voltage: 10 - 36V DC
- IP Rating: IP67

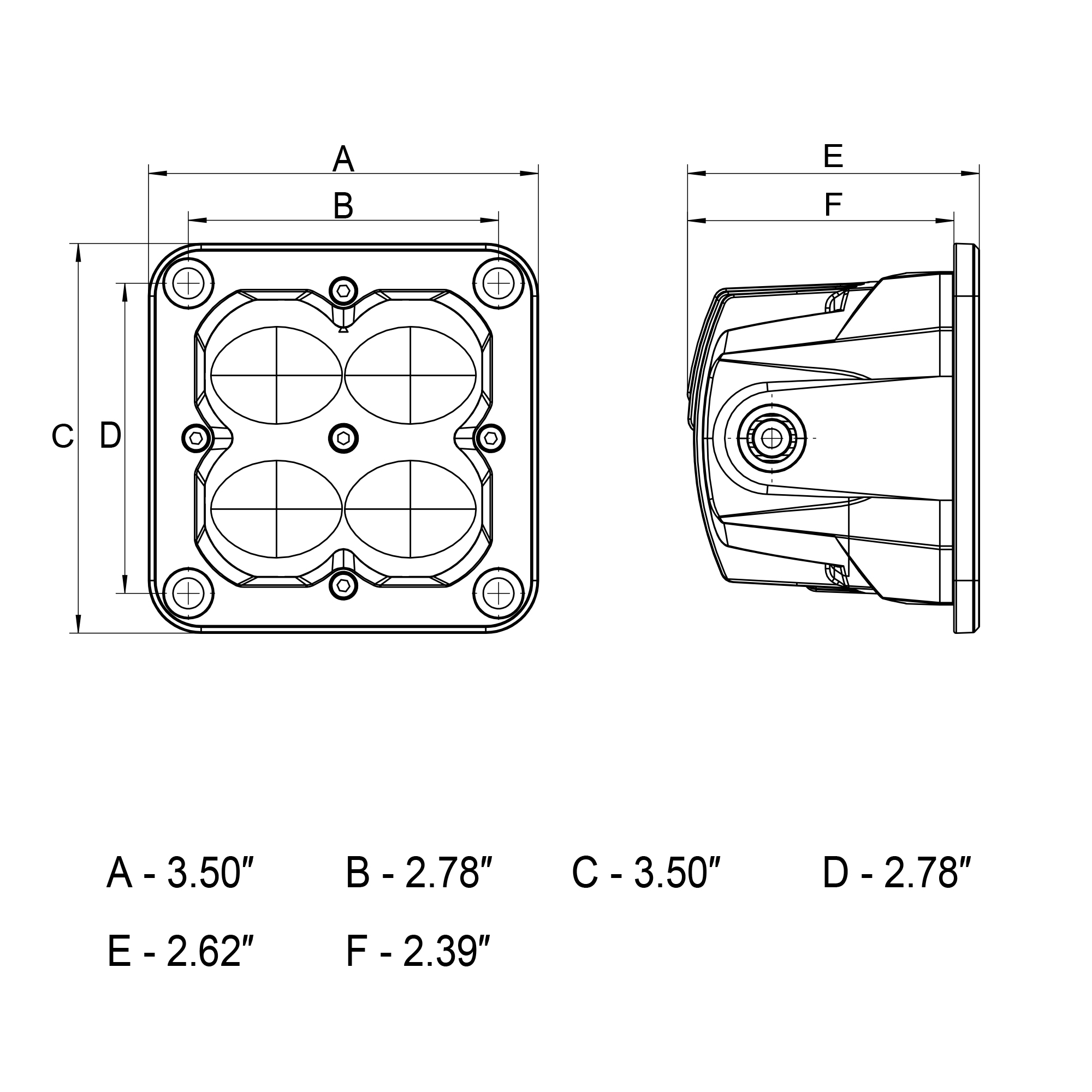

- Dimensions: 3.5" x 3.5" x 2.6"
- Beam Pattern: Fog Light
- Compliance: SAE J583
- Warranty: 3 years
Upgrade your vehicle's lighting system with the ARC Concept Series 3" Flush Mount Cube LED Pod Fog Lights with Yellow Lens. Whether you're navigating through dense fog, driving in heavy rain, or simply seeking a superior lighting solution with a sleek, integrated look, these compact powerhouses deliver exceptional performance. Experience the perfect blend of form and function with ARC's cutting-edge LED technology, and drive with confidence in any weather condition.
