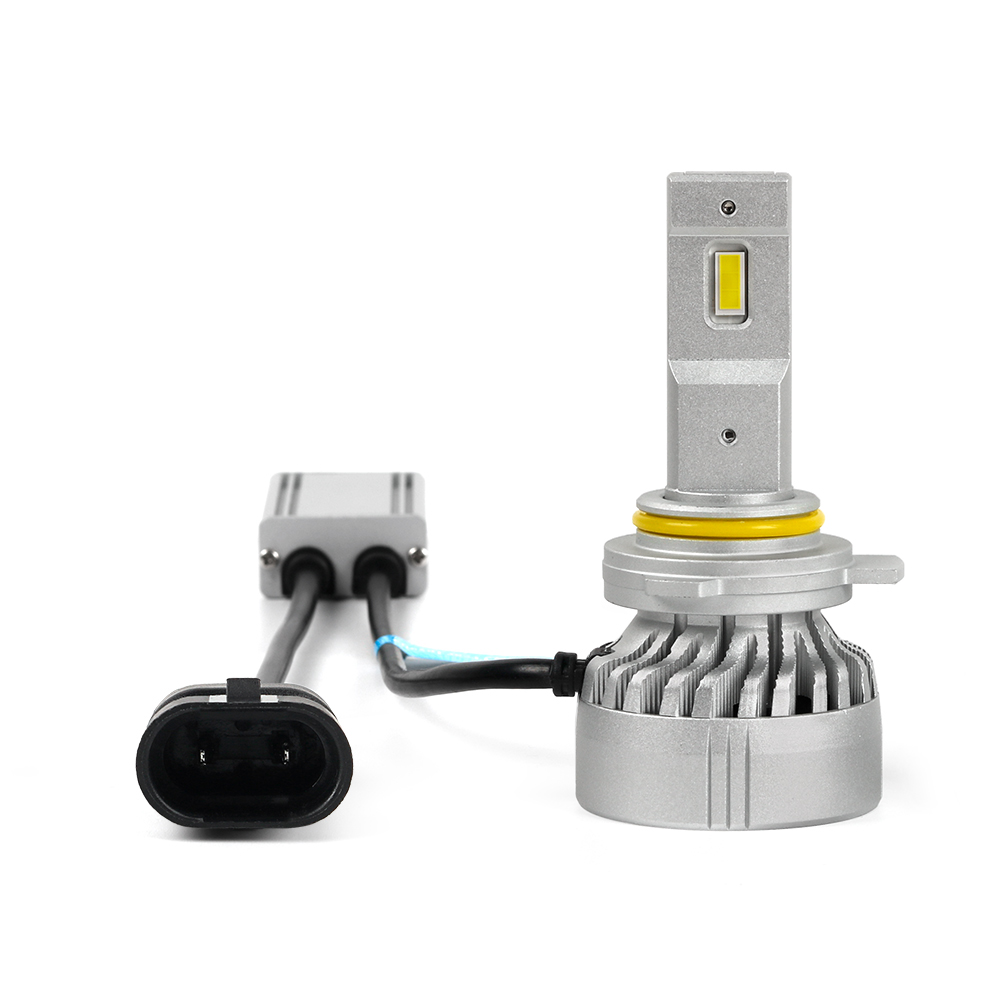

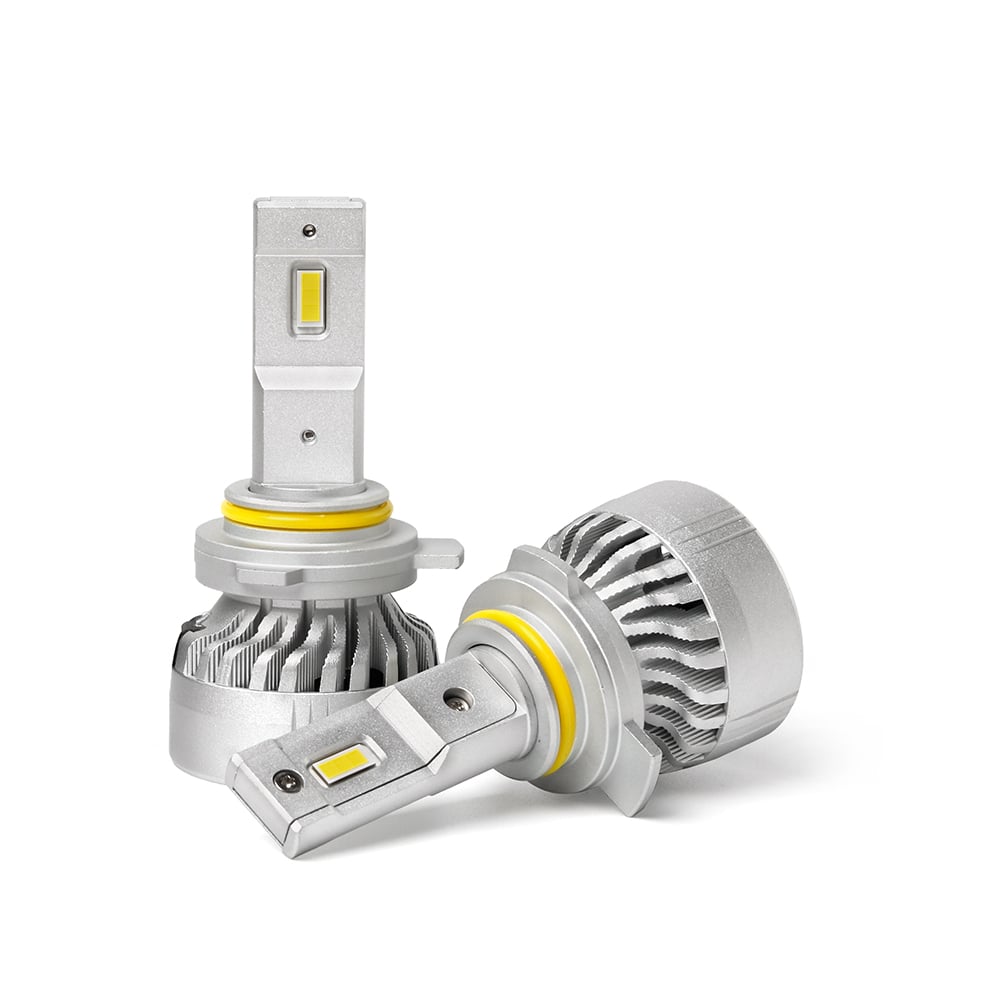

ARC Xtreme LED Replacement Headlight Bulbs - 9012 - Pair

Part #:
22121
SKU:
FG-22121
Availability
Fargo - In Stock
Sioux Falls - In Stock
UPC: 00752830160866

Additional details

  • Powerful 10,000 lumens output that beats the 35W HID system
  • Ideal for off-road and rural driving conditions
  • TopAim feature allows 360° rotation of the bulb head for optimal beam pattern
  • Engineered for long-range visibility with zero glare

Install Video

Install Video of Xtreme bulbs

Revolutionize your driving experience with ARC's Xtreme Series LED Replacement Bulbs. Engineered for those who demand the pinnacle of lighting performance, these bulbs combine cutting-edge technology with unparalleled brightness to deliver a lighting solution that outshines the competition.

Key Features:

  • Extreme Brightness:
    • Produces up to 5x the light output of stock halogen bulbs
    • Outperforms most 35W HID systems with an impressive 10,000 lumens per kit
    • 6500K color temperature for crisp, daylight-like illumination
    • Ideal for off-road and rural driving conditions where maximum visibility is crucial
  • Advanced Cooling Technology:
    • Patented VacPipe vacuum heat pipe cooling system
    • 3x more efficient heat dissipation than conventional heat sink designs
    • TurboCool system with enclosed waterproof, high-speed ball bearing turbofan
    • Compact fan design fits even in tight spaces with dust covers
    • SmartDrive technology with Advanced Temperature Regulation (ATR) ensures longevity and consistent performance
  • Precision Optics and Design:
    • Engineered for long-range visibility with zero glare
    • 360° beam angle for comprehensive illumination
    • TopAim feature allows 360° rotation of the bulb head for optimal beam pattern
    • Compact design fits in spaces where traditional bulky LED replacements can't
  • Versatility and Durability:
    • Compatible with both reflector and projector housings
    • Shock-resistant construction for off-road durability
    • IP65 waterproof rating for all-weather driving
    • Suitable for high beam headlights and projector-style headlamps

Specifications:

  • Light Output: 10,000 lumens (per kit)
  • Color Temperature: 6500K
  • Power: 45W per bulb
  • Current: 3.0A @ 13V DC per bulb
  • Voltage: 9 – 16V DC
  • Beam Angle: 360 Degrees
  • Waterproof Rating: IP65
  • Warranty: 2 years

Xtreme Series vs. Concept Series - Choosing the Right Bulb:

  • Xtreme Series (This Product):
    • Recommended for off-road and rural driving conditions
    • Best for projector-style headlamps and high beam headlights
    • Delivers extreme brightness, outperforming 35W HID systems
    • Ideal for drivers who need maximum illumination in challenging environments
    • Not recommended for fog lights due to potential issues with the cooling system in enclosed spaces
  • Concept Series:
    • Ideal for city driving and improved everyday visibility
    • Features a more focused and controlled beam with zero glare
    • Best for reflector-style low beam headlights and fog lights
    • Compact design without fan cooling for easier fitment in tight spaces
    • Recommended when a more subtle upgrade from halogen is desired

When to Use a Decoder Harness: A decoder harness may be necessary when installing these LED bulbs, particularly in vehicles with sophisticated electrical systems. Consider using a decoder if you experience:

  • Bulb flashing when turned on
  • "Headlight out" error displayed on the dashboard
  • Bulbs staying illuminated after being turned off
  • Abnormally dim light output

The decoder harness is designed to handle both CANbus and Pulse Width Modulation (PWM) systems, providing a plug-and-play solution for most modern vehicles. It's particularly useful for:

  • Power Monitoring: Some CANbus systems monitor current input and may trigger errors with LED bulbs. The decoder helps the system adjust to the new power demands.
  • PWM Compatibility: LED bulbs require constant current, unlike halogen bulbs. The decoder's capacitors store power to provide a steady current flow, preventing flickering or premature shut-off.

Installation Tips:

  • Orientation: Position LED chips at 3 o'clock and 9 o'clock for optimal beam pattern
  • Alignment: Ensure the spade shaft is vertical, with forward chips in the top, front "up" position
  • Cooling: Ensure adequate space for proper fan operation and heat dissipation
  • Wiring: Consider using a decoder harness for vehicles with advanced electrical systems

The ARC Xtreme Series LED Replacement Bulbs represent the zenith of automotive lighting technology. They're engineered for drivers who refuse to compromise on visibility and demand the best possible illumination in challenging driving conditions. Whether you're conquering off-road trails, navigating pitch-black rural roads, or simply want the brightest legal lights for your vehicle, the Xtreme Series delivers unparalleled performance.

Upgrade to the ARC Xtreme Series LED Replacement Bulbs and experience a new level of clarity and confidence on the road. With their combination of extreme power, efficient cooling, and intelligent design, these bulbs don't just replace your old halogen lights – they redefine your entire driving experience.

Brand ARC LED Lighting
Length 6 inch(es)
Width 6 inch(es)
Height 3 inch(es)
Weight .88 lb(s)
UPC 00752830160866

  • 2020 Alfa Romeo 4C
  • 2024 Buick Envision
  • 2023 Buick Envision
  • 2022 Buick Envision
  • 2021 Buick Envision
  • 2020 Buick Envision
  • 2019 Buick Envision
  • 2018 Buick Envision
  • 2017 Buick Envision
  • 2017 Buick Regal
  • 2016 Buick Envision
  • 2016 Buick LaCrosse
  • 2016 Buick Regal
  • 2015 Buick LaCrosse
  • 2015 Buick Regal
  • 2014 Buick LaCrosse
  • 2014 Buick Regal
  • 2022 Cadillac XT5
  • 2021 Cadillac XT5
  • 2020 Cadillac XT5
  • 2019 Cadillac ATS
  • 2019 Cadillac XT5
  • 2018 Cadillac ATS
  • 2018 Cadillac XT5
  • 2017 Cadillac ATS
  • 2017 Cadillac XT5
  • 2016 Cadillac ATS
  • 2015 Cadillac ATS
  • 2014 Cadillac ATS
  • 2013 Cadillac ATS
  • 2022 Chevrolet Equinox
  • 2021 Chevrolet Equinox
  • 2020 Chevrolet Equinox
  • 2019 Chevrolet Cruze
  • 2019 Chevrolet Equinox
  • 2018 Chevrolet Cruze
  • 2018 Chevrolet Equinox
  • 2017 Chevrolet Cruze
  • 2016 Chevrolet Cruze
  • 2016 Chevrolet Impala
  • 2015 Chevrolet Impala
  • 2015 Chevrolet Volt
  • 2014 Chevrolet Impala
  • 2014 Chevrolet Volt
  • 2013 Chevrolet Volt
  • 2012 Chevrolet Volt
  • 2011 Chevrolet Volt
  • 2015 Chrysler 200
  • 2015 Chrysler 300
  • 2014 Chrysler 200
  • 2014 Chrysler 300
  • 2013 Chrysler 200
  • 2013 Chrysler 300
  • 2012 Chrysler 200
  • 2012 Chrysler 300
  • 2011 Chrysler 200
  • 2011 Chrysler 300
  • 2023 Dodge Challenger
  • 2022 Dodge Challenger
  • 2021 Dodge Challenger
  • 2020 Dodge Challenger
  • 2019 Dodge Challenger
  • 2018 Dodge Challenger
  • 2017 Dodge Challenger
  • 2016 Dodge Challenger
  • 2016 Dodge Dart
  • 2015 Dodge Challenger
  • 2015 Dodge Dart
  • 2015 Dodge Durango
  • 2014 Dodge Dart
  • 2014 Dodge Durango
  • 2013 Dodge Dart
  • 2023 Fiat 500X
  • 2022 Fiat 500X
  • 2021 Fiat 500X
  • 2020 Fiat 500L
  • 2020 Fiat 500X
  • 2019 Fiat 500
  • 2019 Fiat 500L
  • 2019 Fiat 500X
  • 2018 Fiat 500
  • 2018 Fiat 500L
  • 2018 Fiat 500X
  • 2017 Fiat 500
  • 2017 Fiat 500L
  • 2017 Fiat 500X
  • 2016 Fiat 500
  • 2016 Fiat 500L
  • 2016 Fiat 500X
  • 2015 Fiat 500
  • 2015 Fiat 500L
  • 2014 Fiat 500
  • 2014 Fiat 500L
  • 2013 Fiat 500
  • 2012 Fiat 500
  • 2019 Ford Taurus
  • 2018 Ford Taurus
  • 2017 Ford Police Interceptor Sedan
  • 2017 Ford Taurus
  • 2016 Ford Police Interceptor Sedan
  • 2016 Ford Taurus
  • 2015 Ford Police Interceptor Sedan
  • 2015 Ford Taurus
  • 2014 Ford Edge
  • 2014 Ford Police Interceptor Sedan
  • 2014 Ford Taurus
  • 2013 Ford Edge
  • 2013 Ford Police Interceptor Sedan
  • 2013 Ford Taurus
  • 2012 Ford Edge
  • 2011 Ford Edge
  • 2023 GMC Acadia
  • 2022 GMC Acadia
  • 2021 GMC Acadia
  • 2020 GMC Acadia
  • 2019 GMC Acadia
  • 2018 GMC Acadia
  • 2017 GMC Acadia
  • 2016 GMC Acadia
  • 2015 GMC Acadia
  • 2015 GMC Sierra 1500
  • 2015 GMC Sierra 2500 HD
  • 2015 GMC Sierra 3500 HD
  • 2014 GMC Acadia
  • 2014 GMC Sierra 1500
  • 2013 GMC Acadia
  • 2015 Hyundai Tucson
  • 2014 Hyundai Tucson
  • 2022 Jaguar F-Pace
  • 2021 Jaguar F-Pace
  • 2020 Jaguar F-Pace
  • 2019 Jaguar F-Pace
  • 2018 Jaguar F-Pace
  • 2017 Jaguar F-Pace
  • 2016 Jeep Cherokee
  • 2016 Jeep Compass
  • 2015 Jeep Cherokee
  • 2015 Jeep Compass
  • 2014 Jeep Cherokee
  • 2014 Jeep Compass
  • 2015 Lincoln MKX
  • 2014 Lincoln MKX
  • 2013 Lincoln MKX
  • 2012 Lincoln MKX
  • 2011 Lincoln MKX
  • 2022 Mitsubishi Eclipse Cross
  • 2020 Mitsubishi Eclipse Cross
  • 2019 Mitsubishi Eclipse Cross
  • 2018 Mitsubishi Eclipse Cross
  • 2007 Nissan Maxima
  • 2006 Nissan Maxima
  • 2005 Nissan Maxima
  • 2004 Nissan Maxima
  • 2015 Ram 1500
  • 2015 Ram 2500
  • 2015 Ram 3500
  • 2015 Ram 4500
  • 2015 Ram 5500
  • 2014 Ram 1500
  • 2014 Ram 2500
  • 2014 Ram 3500
  • 2014 Ram 4500
  • 2014 Ram 5500
  • 2013 Ram 1500
  • 2013 Ram 2500
  • 2013 Ram 3500
  • 2013 Ram 4500
  • 2013 Ram 5500
  • 2016 Scion iM
  • 2016 Scion tC
  • 2015 Scion tC
  • 2014 Scion tC
  • 2022 Toyota C-HR
  • 2021 Toyota C-HR
  • 2020 Toyota C-HR
  • 2019 Toyota C-HR
  • 2018 Toyota C-HR
  • 2018 Toyota Corolla iM
  • 2018 Toyota RAV4
  • 2018 Toyota Yaris
  • 2017 Toyota Corolla iM
  • 2017 Toyota RAV4
  • 2017 Toyota Yaris
  • 2016 Toyota RAV4
  • 2016 Toyota Yaris
  • 2015 Toyota Yaris
