ReadyLIFT SST Lift Kit w/Shocks - 3.5 in. Front/3.0 in. Rear Lift - w/Fabricated Control Arms And Bilstein Shocks

Part #:
69-3035
SKU:
RE-69-3035
Availability
Fargo - Chat Or Call For Availability
Sioux Falls - Chat Or Call For Availability
Special Order Product (additional freight charges may apply)
UPC: 00194933022731

Additional details

  • 2020-2021 GM 2500/3500 HD including AT4
  • 3.5" Front/ 2" Rear SST Lift Kit
  • SST lift specific Forged Torsion Keys with new F/R Bilstein 5100 series shocks, Xtreme-Duty fabricated steel upper control arms, heavy-duty tie rods, differential spacers, new longer bump stops, and longer hardware.
  • Allows for 20x9 0 offset - 35x12.50 tire. *Max with trimming: 20x10 -18 offset - 35x12.50
  • Some fender well variance may be experienced between Silverado and Sierra models.
  • Can be used on trucks equipped with factory snow prep/plow packages.
  • Works with trucks equipped with either the OE #84461807 or OE #84634344 factory torsion keys and requires ReadyLIFT torsion key unloading tool 66-7822B or similar for installation.
  • NOTE: Use of Auto 4 Hi feature not recommended. Currently does not fit 2022-2021 AT4 applications
  • Special Note: When setting the torsion key adjustment bolt do not exceed 27.5” from the wheel center to the fender edge. Exceeding this will create a top off condition, meaning the suspension has little to no down travel. The result is poor ride quality, and premature wear of components.

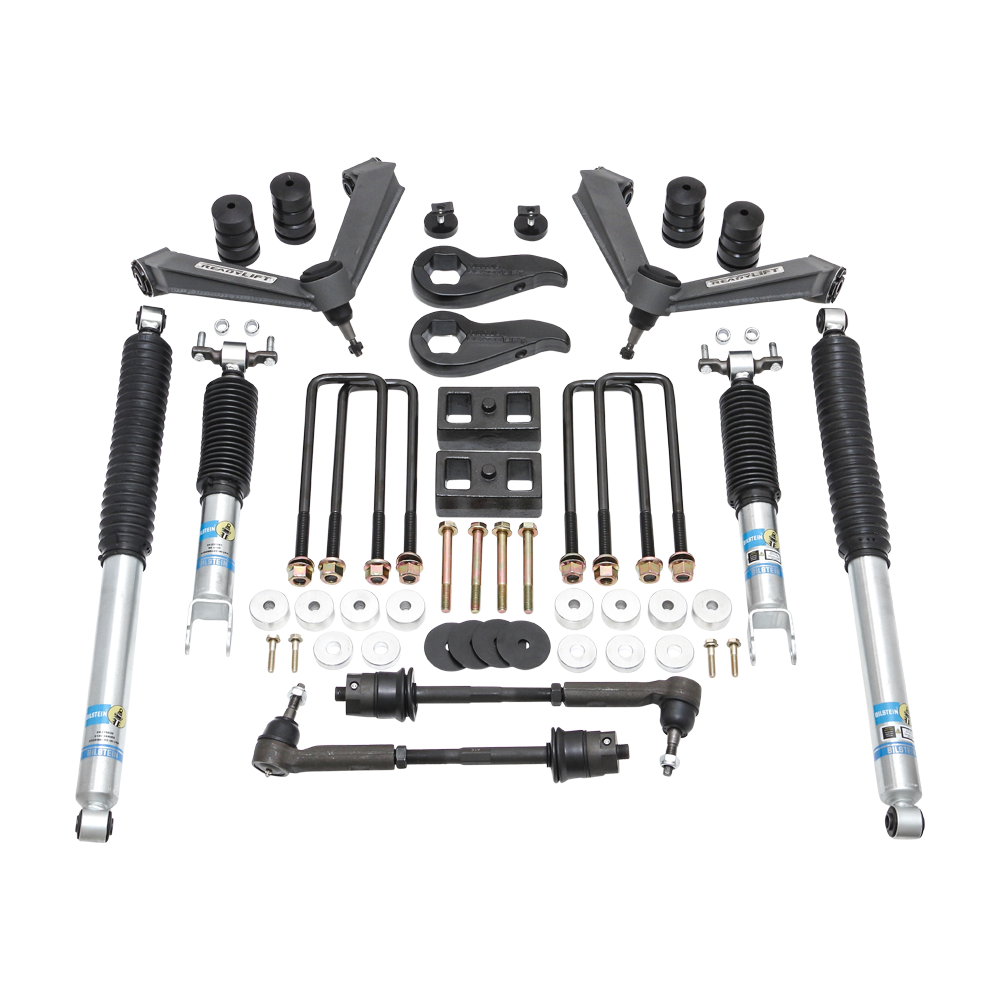

69-3035 - GM Silverado/Sierra 2500/3500 HD 2WD/4WD 3.5" SST Lift Kit - 2020-2021 For those who want a more lifted stance than what our popular 66-3020 2" leveling kit or 69-3030 3" SST lift kit, we now offer the 69-3035 3.5"/2" premium SST Lift Kit. This system provides 3.5" of adjustable front lift with new forged torsion keys specialized for this 3.5" front lift. This new premium SST lift kit includes ReadyLIFT heavy-duty fabricated steel upper control arms with heavy-duty ball joints and maintenance-free TCT non-bonded pivot bushings along with heavy-duty tie rods featuring increased pivot angles over stock. Taller differential drop spacers and skid plate spacers are included, as well as new taller bump stops round out the front suspension. Our popular OE style cast iron 2" tall rear lift blocks with new longer U-bolts provide the right rear lift for a strong stance. And to make it all ride and handle to match the truck's lifted look, we include new front/rear Bilstein 5100 series shocks. The 69-3035 SST lift kit works with trucks equipped with either of the OE #84461807 or OE #84634344 factory torsion keys, and requires ReadyLIFT torsion key unloading tool 66-7822B (or similar) for installation. Features and Benefits: 3.5" Front/ 2" Rear SST Lift Kit SST lift specific Forged Torsion Keys with new F/R Bilstein 5100 series shocks, Xtreme-Duty fabricated steel upper control arms, heavy-duty tie rods, differential spacers, new longer bump stops, and longer hardware. Allows for 20x9 0 offset - 35x12.50 tire. *Max with trimming: 20x10 -18 offset - 35x12.50 Some fender well variance may be experienced between Silverado and Sierra models. Can be used on trucks equipped with factory snow prep/plow packages. Works with trucks equipped with either the OE #84461807 or OE #84634344 factory torsion keys and requires ReadyLIFT torsion key unloading tool 66-7816A or similar for installation.

BrandReadyLIFT
Length28.75 inch(es)
Width21.25 inch(es)
Height7.75 inch(es)
Weight71 lb(s)
UPC00194933022731

  • 2021 Chevrolet Silverado 2500 HD
  • 2021 Chevrolet Silverado 3500 HD
  • 2020 Chevrolet Silverado 2500 HD
  • 2020 Chevrolet Silverado 3500 HD
  • 2021 GMC Sierra 2500 HD
  • 2021 GMC Sierra 3500 HD
  • 2020 GMC Sierra 2500 HD
  • 2020 GMC Sierra 3500 HD
